HOW TO ORDER SUPERIOR GRADE WATER CURB BOXES

Choose from the following categories to build the curb box best suited to your personal needs. Many options are available so please look this over closely, we don't want you to miss a thing!

ONE = LID LETTERING
S = Sewer
W = Water		 TWO = BOX SIZE
2 = 2"

THREE = LID MATERIAL (& LID TYPE)
I = Iron
P = Plastic





Only use these codes with Group Four - Code L:

I3 = Iron (Flush)

IT = Iron (Threaded)



FOUR = UPPER TUBE STYLE
C = Plastic Flange Top with Cast Iron Collar
F = Plastic Flange Top
H = Heavy Duty Iron Flange Top
S = Straight Top Flange





L = Light Duty Top Iron Flange
FIVE = ADJUSTABLE RANGE - Measured from the top of the box to the bottom of the box.
If you chose CODE C, F or S from GROUP FOUR, choose from the following codes:

A = 18 ⅝" - 24"                    G = 30 ⅝" - 48"
B = 20 ⅝" - 28"                     H = 37 ½" - 62"
C = 22 ⅝" - 32"                     K = 51 ½" - 76"
D = 24 ⅝" - 36"                     L = 63 ½" - 88"
E = 26 ⅛" - 39"                     M = 75 ½" - 100"
F = 27 ⅝" - 42"

 If you chose CODE H from GROUP FOUR, choose from the following codes:

A = 21 ⅜" - 26 ¾"            G = 33 ⅜" - 50 ¾"
B = 23 ⅜" - 30 ¾"            H = 40 ⅜" - 64 ¾"
C = 25 ⅜" - 34 ¾"            K = 54 ¼" - 78 ¾"
D = 27 ⅜" - 38 ¾"            L = 66 ¼" - 90 ¾"
E = 28 ⅞" - 41 ¾"            M = 78 ¼" - 102 ¾"
F = 30 ⅜" - 44 ¾"

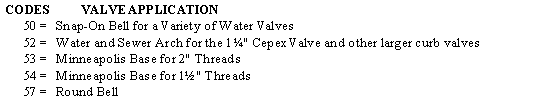

SIX = SPECIAL BELLS

SEVEN = LID COLOR
(Black is Standard)
A = Black                          D = Red
B = Blue                             E = White
C = Green                           F = Orange		 EIGHT = FLANGE COLOR
 (Silver is Standard)
G = White
H = Yellow
J = Black
NINE = TRACER WIRE HOLES
 (Not Available On Heavy Duty Boxes)
K = Tracer Wire Holes       		 TEN = VENT HOLE
L = One 3/8" Vent Hole (Mandatory Group Four Codes C, F and H)
N = Two 3/8" Vent Holes
ELEVEN = MAGNET
(One Magnet in the Upper Tube is Standard, except on Group Four - Code L)
P = No Magnet at All
Q = One Magnet in the Lower Tube
R = One Magnet in the Upper Tube and One in the Lower Tube

FOR OTHER OPTIONS OR VARIATIONS, PLEASE CONSULT THE FACTORY.

Click here to contact Handley Industries for Information or Ordering....
