HOW TO ORDER SUPERIOR GRADE CURB BOX PARTS AND ACCESSORIES

PENTAGON WRENCH CODE    =   PW

EXTENSIONS = XTG2 & ONE CODE A = 16½"          C = 28" B = 19 ½"          D = 34½"

STATIONARY RODS = SR & ONE CODE 1 = 15"    4 = 30"    7 = 48" 2 = 21"    5 = 36"    8 = 54" 3 = 24"    6 = 42"    9 = 60"

COLLARS = CO & ONE CODE S = Silver W = White Y = Yellow

REPLACEMENT LIDS = LI & ONE CODE FROM THE FOLLOWING CATEGORIES:

ONE = LETTERING TWO = SIZE THREE = MATERIAL (& TYPE) FOUR = COLOR
                                                                                                                                                                    (Yellow is Standard)
G = Gas                                           2 = 2"                               I = Iron                                                     A = Black             D = Red
S = Sewer                                                                                P = Plastic                                                 B = Blue               E = White
V = Vent                                                                        Use these Codes with Upper Tube                C = Green             F = Orange
W = Water                                                                    Style Code L

                                                                                                  I3 = Iron (Flush)

                                                                                                  IT = Iron (Threaded)

FIVE = VENT HOLE
L = One 3/8" Vent Hole (Mandatory for Upper Tube Style Codes C, F, and H)
N = Two 3/8" Vent Holes

REPLACEMENT UPPER TUBE = UTG2 & ONE CODE FROM THE FOLLOWING CATEGORIES:

ONE = UPPER TUBE STYLE TWO = LENGTH
C = Plastic Flange Top with Cast Iron Collar                        A = 10 ½" ('A' Box)                     G = 22 ½" ('G' Box)
F = Plastic Flange Top                                                              B = 12 ½" ('B' Box)                      H = 30 ½" ('H' Box)
H = Heavy Duty Iron Flange Top                                           C = 14 ½" ('C' Box)                      K = 44 ½" ('K' Box)
S = Straight Top Flange                                                            D = 16 ½ ('D' Box)                        L = 56 ½ ('L' Box)
L = Light Duty Iron Flange Top                                              E = 18" ('E' Box)                          M = 68 ½ ('M' Box)
                                                                                                     F = 19 ½" ('F' Box)

THREE = FLANGE  COLOR FOUR = TRACER WIRE HOLE FIVE = MAGNET
(Silver is Standard)                                (Not Available on Heavy Duty Box)    (One Magnet in the upper tube is Standard, except on Group One - Code L)
G = White                                                K = Tracer Wire Holes                            P = No Magnet
H = Yellow
J = Black

REPLACEMENT UPPER TUBE & LID ASSEMBLIES  All assemblies begin with UL.  Repeat all the steps beginning with  Group One for REPLACEMENT LIDS and REPLACEMENT UPPER TUBES.

REPLACEMENT LOWER TUBES

ONE = LOWER TUBE SIZE
LTG2 = Lower Tube Gas 2"
LTW2 = Lower Tube Water 2"

TWO = LENGTH
A = 16 3/8" ('A' Box)                              E = 22 3/8" ('D' Box)                            H = 28 3/8" ('G' Box )
C = 18 3/8" ('B' Box)                                F= 23 7/8" ('E' Box)                               J = 34 3/8" ('H', 'K', 'L' or 'M' Box)
D = 20 3/8" ('C' Box)                               G = 25 3/8" ('F' Box)

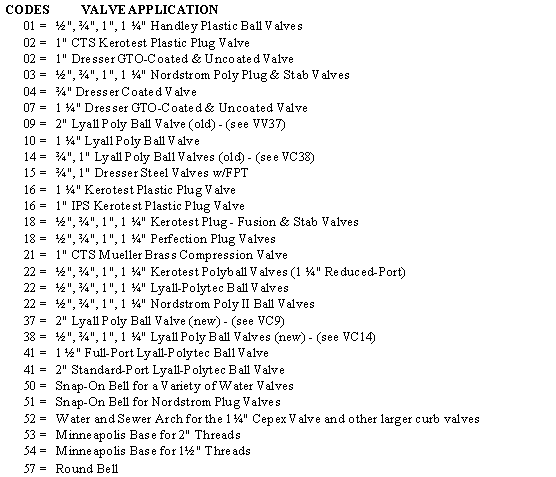

THREE = SUPPORT MODIFICATION AND SPECIAL BELLS

FOUR = MAGNET
Q = Magnet on Lower Tube

FOR OTHER OPTIONS OR VARIATIONS, PLEASE CONSULT THE FACTORY.
