HOW TO ORDER SUPERIOR GRADE 4" VALVE BOX PARTS AND ACCESSORIES

PENTAGON WRENCH = PW

EXTENSIONS = XTG4 & One Code
AL = 18"                BL = 35⅝"

RISERS = RIG4
 (Raises Box 1½", Stackable & Compatible with All 4" Valve Boxes)
REPLACEMENT LIDS  =  LI & One Code from the Following Categories:

ONE = LETTERING     TWO = SIZE        THREE = LID TYPE               FOUR =COLOR              FIVE = VENT HOLE
G = Gas                                    4 = 4"             (Locking is Standard)            (Silver is Standard)           C = One 3/8" Vent Hole
S = Sewer                                                          N = Non-Locking                        A = Yellow
W = Water                                                                                                               B = Blue
                                                                                                                                    J = Black

REPLACEMENT UPPER TUBES  =  UTG4 & One Code from the Following Categories:

ONE = BOX TYPE                            TWO = LENGTH                   THREE = MAGNET
V = Valve Box                                     A = 12" (2' Box)                       (One Magnet Located in the Flange is Standard)
H = Heavy Duty                                 B = 17½" (3' Box)                      D = No Magnet
                                                              C = 29½" (4' Box)                    (Heavy Duty Boxes are not supplied with a magnet.)
                                                              D = 42" (5' Box)
REPLACEMENT UPPER TUBE & LID ASSEMBLIES  All assemblies begin with UL.  Repeat all the steps beginning with  Group One for REPLACEMENT LIDS and REPLACEMENT UPPER TUBES.
REPLACEMENT LOWER TUBES  =  LTG4 & One Code from the Following Categories:

 ONE = ARCH                  TWO = LENGTH
A = Yes                            A = 27⅛" (3', 4', 5' Box)
N = No                              B = 20¾" (2' Box)

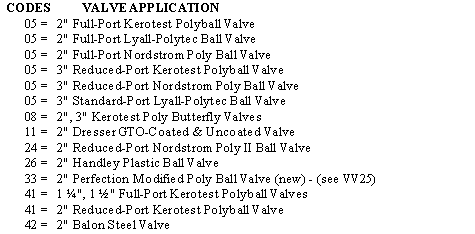

THREE = SUPPORT SYSTEM MODIFICATION & VALVE APPLICATION

FOR OTHER OPTIONS OR VARIATIONS, PLEASE CONSULT THE FACTORY.
