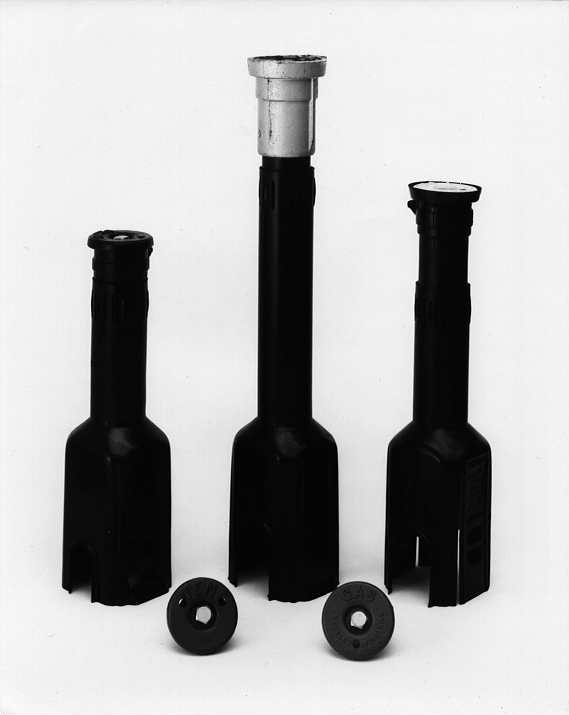

Slip-type design protects the service from downward pressure. The box absorbs the pressure from above. If all the downward adjustment is used and additional pressure causes the box to collapse further, the bell area will collapse before damaging the service. This is a SAFE installation.
Meets DOT requirement 192.181; "if the valve is installed in a buried box, the box must be installed so as to avoid transmitting external loads to the main."
Easily adjusts to grade level. No need to dig when grade changes. Just step-on to push down or pry it up.
Heat formed dimples give the box strong tension. The tension and flange under the lid keeps the upper tube from settling.
A full throat/unobstructed upper tube, allows more room to operate the key.
Made from SUPERIOR GRADE ABS plastic. It's long lasting and won't rust, rot or corrode.
Choose from cast iron or plastic lids, with or without vent holes.
Features a one-piece locking lid. No parts to lose.
Standard lid is marked "GAS". Vent and Test lids are also available.
Customized lids available for an additional charge.
Box design offers 2" cast iron collar, 2" cast iron light duty, flanged, straight or 5" cast iron heavy duty upper tubes.
A permanent "Real" magnet is in every upper tube. A metal reflector is included in every plastic lid for easy location with electronic locators.
Extensions are available, or upper tubes can be used as extensions.
Tracer wire holes in the upper tube are available.
Use with a Handley valve support for the ideal installation.
Snap-on bells available upon request.
